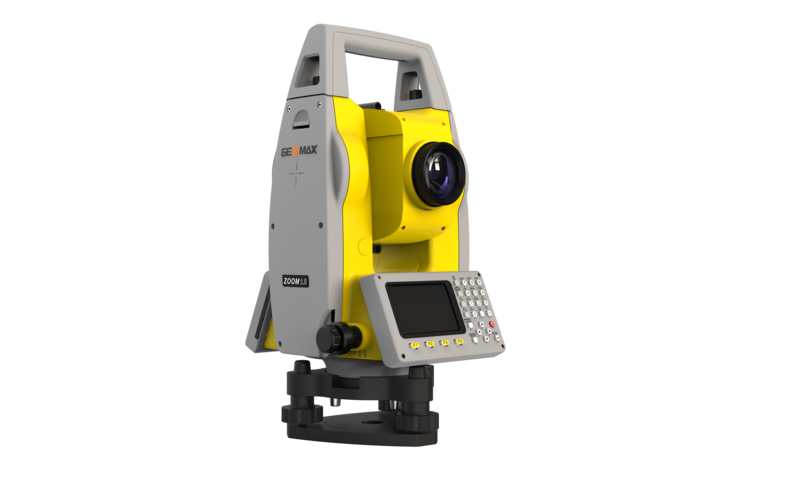

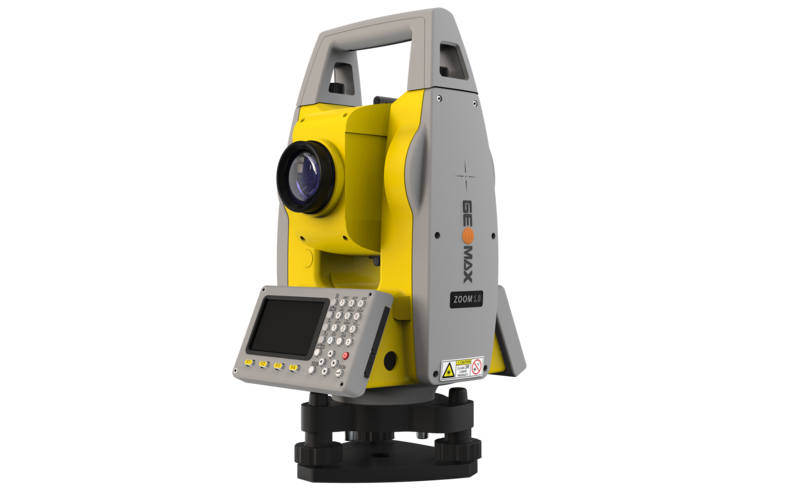

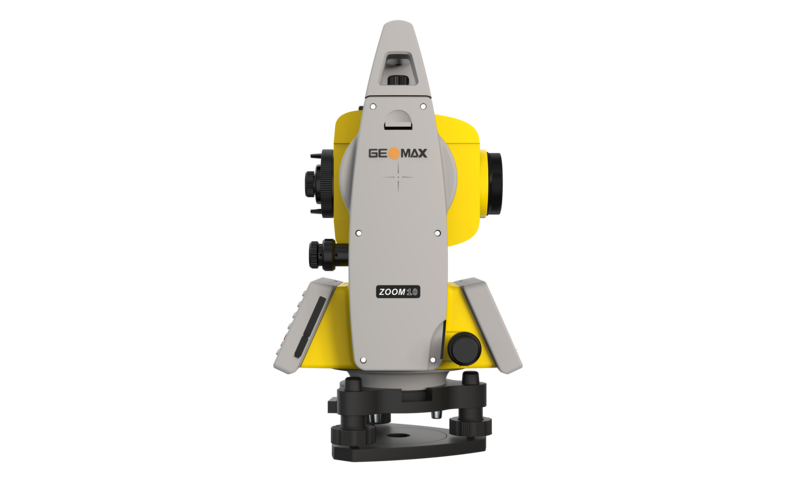

GeoMax Zoom 10 Total Station
GeoMax Zoom 10 Total Station is a reliable choice for precise angle and distance measurements in the field.
PriceContact manager for pricing
Артикул:20001
Warranty
From the manufacturer
Delivery
Across Kazakhstan
Training
Operator courses
| Angular measurements / Accuracy | 2” |
| Angular measurements / Display resolution | 1”, 5”, 10” |
| Angular measurements / Method | Absolute, encoding |
| Angular measurements / Compensator | Dual-axis |
| Telescope / Type | neXus |
| Telescope / Magnification | 30x |
| Distance measurement to prism / Range | 3000 m |
| Distance measurement to prism / Accuracy | 3 mm + 2 ppm |
| Distance measurement to prism / Standard time (fast/standard) | 1/1,5 s |
| Reflectorless distance measurement / Range | 350 m |
| Reflectorless distance measurement / Accuracy | 3 mm + 2 ppm |
| Reflectorless distance measurement / Spot size | 8 x 20 mm @ 50 m |
| Interface / Keyboard | Two alphanumeric |
| Interface / Display | B/W, 160 x 96, backlit; 6 lines |
| Interface / Data recording | Internal memory; 20,000 points |
| Interface / Bluetooth | Yes |
| Interface / Removable media | SD card |
| Interface / Ports | Serial; USB mini |
| Software / Operating system | Embedded CE |
| Software / Built-in field software | Yes |
| Software / Remote field software (Android) | X-PAD Ultimate GO |
| Dimensions and operating conditions / Weight | max. 5.5 kg with battery and tribrach |
| Dimensions and operating conditions / Operating temperature | from -20 °C to 50 °C |
| Dimensions and operating conditions / Protection rating | IP54 |
| Power supply / Type / Battery life | removable; 10 hours |
| Plummet / Type | Laser plummet with adjustable brightness |
